Adelino AL(BL) Vertical Centrifugal Multi Stage Pump | Adelino by KHM Megatools Corp.
Adelino AL(BL) Vertical Centrifugal Multi Stage Pump | Adelino by KHM Megatools Corp.
Adelino

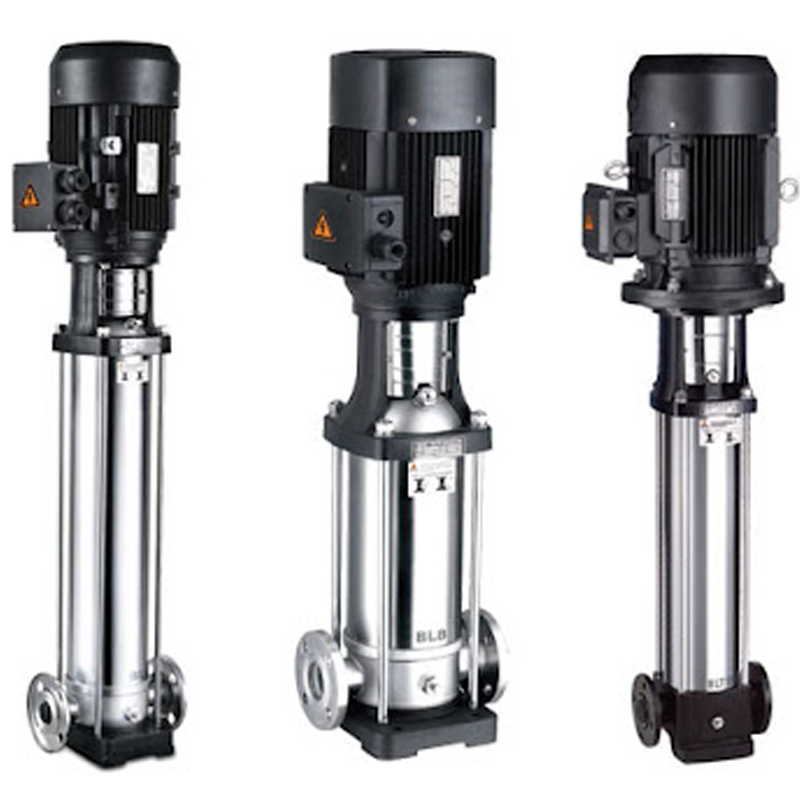

Adelino AL(BL) Vertical Centrifugal Multi Stage Pump

Product SKU:
Available:
Only 50 items in stock
50 items in stock
In stock
Pre-order
Out of stock
₱66,000.00
Model (HP)
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description

The Adelino AL(BL) Vertical Centrifugal Multi Stage Pump is a stainless-steel vertical booster pump designed for stable pressure delivery in water supply and circulation systems. Built with SS304 overflow parts and a reliable IE2 motor (IP55 / Class F), it is suitable for continuous-duty applications in commercial, industrial, and building services.

Model
 Power Rate Current Max Flow Max Head Max Range
inlet/Outlet Diameter (mm)
Price
KW HP 220V, 60Hz, Single Phase m³/hr (M) M
AL2-11 (BL2-11) 2.2 3 220V, 60Hz, Single Phase 4 143.00 75~143 25 66,000.00
AL2-15 (BL2-15) 3 4 220V, 60Hz, Single Phase 4 195 103~195 25 72,500.00
AL4-4 (BL4-4) 1.5 2 220V, 60Hz, Single Phase 7 52 35~52 32 56,000.00
AL4-5 (BL4-5) 2.2 3 220V, 60Hz, Single Phase 7 65 44~65 32 59,500.00
AL4-6 (BL4-6) 2.2 3 220V, 60Hz, Single Phase 7 78 54~78 32 62,000.00
AL4-8 (BL4-8) 3 4 220V, 60Hz, Single Phase 7 104 72~104 32 69,000.00
AL4-10 (BL4-10) 4 5.5 220V, 60Hz, Three Phase 7 130 90~130 32 79,500.00
AL4-12 (BL4-12) 4 5.5 220V, 60Hz, Three Phase 7 156 109~156 32 81,500.00
AL8-12 (BL8-12) 7.5 10 220V, 60Hz, Three Phase 13 173 125~173 40 177,500.00

Key Benefits

  • Vertical multi-stage design for stable high-pressure water boosting
  • SS304 stainless steel overflow parts for corrosion resistance
  • IP55 protection and Class F insulation for dependable daily operation
  • IE2 motor efficiency standard for improved energy performance
  • Suitable for cold water and hot water circulation systems (model dependent)

Product Overview

The Adelino AL(BL) series pump is engineered for systems requiring consistent water pressure such as building water boosting, circulation lines, filtration systems, and utility water transfer. Its vertical multi-stage structure supports higher pressure compared to single-stage pumps while maintaining compact installation footprint.

It features stainless steel (SS304) wetted parts for improved resistance against corrosion and contamination, along with a standard cast iron movable flange for robust pipe connection. For applications using heavier-than-water media (higher density or viscosity), selection of a higher motor power is recommended to ensure safe operation.

Ideal Applications

  • Building water boosting systems
  • Commercial and industrial pressure boosting
  • Hot and cold water circulation
  • Water transfer, filtration, and distribution systems
  • General utility pump installations

Technical Specifications

Brand Adelino
Series AL(BL) Vertical Centrifugal Multi Stage Pump
Medium Temperature Normal type: 0°C to 68°C / Hot water type: 0°C to 120°C
Ambient Temperature Up to +40°C
Max Ambient Pressure 1.0 MPa
pH Range 5 to 8
Motor Standard IE2 Efficiency, IP55 Protection, Class F Insulation
Wetted / Overflow Parts SS304 Stainless Steel
Flange Standard Cast Iron Movable Flange

What’s Included

  • Adelino AL(BL) Vertical Centrifugal Multi Stage Pump (unit)
  • Standard cast iron movable flange
