Adelino AL(BL)Vertical Centrifugal Multi Stage Pump (Fire Pump Series) | Adelino by KHM Megatools Corp.
Adelino AL(BL)Vertical Centrifugal Multi Stage Pump (Fire Pump Series) | Adelino by KHM Megatools Corp.
Adelino

Adelino AL(BL)Vertical Centrifugal Multi Stage Pump (Fire Pump Series)

Product SKU:
Available:
Only 50 items in stock
50 items in stock
In stock
Pre-order
Out of stock
₱89,500.00
Model-[HP]
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description

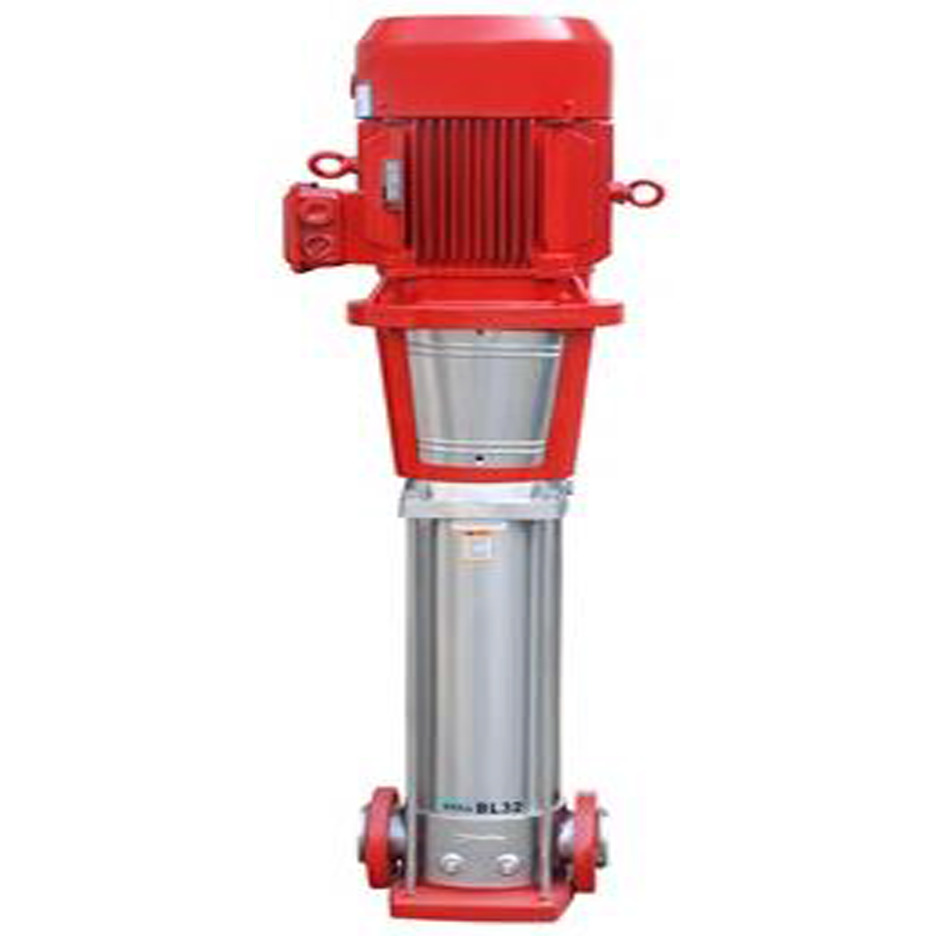

The Adelino AL(BL) Vertical Centrifugal Multi Stage Pump (Fire Pump Series) is a vertical multi-stage pressure boosting pump designed for reliable water transfer in fire protection and building water supply systems. Built with an IE2 motor and stainless steel SS304 wetted components, it is engineered for stable operation, corrosion resistance, and long service life.

Model
 Power Max Flow Max Head Max Range
inlet/Outlet Diameter (mm)
Price
HP KW Rate Current m³/hr (M) M
AL16-2 (BL16-2) 5.5 4 220V,60Hz, Three Phase 24 38.00 27~38 50 89,500.00
AL16-4 (BL16-4) 10 7.5 220V,60Hz, Three Phase 24 76 54~76 50 117,000.00
AL20-5 (BL20-5) 15 11 220V,60Hz, Three Phase 32 98 64~98 50 179,500.00
AL32-2 (BL32-2) 10 7.5 220V,60Hz, Three Phase 44 52 3~52 65 205,000.00
AL32-4-2 (BL32-4-2) 15 11 220V,60Hz, Three Phase 44 94 56~94 65 301,000.00



Key Benefits

  • Vertical multi-stage centrifugal design for stable pressure boosting
  • IP55 rated motor protection for demanding installations
  • Class F insulation standard for improved motor durability
  • IE2 motor efficiency for dependable continuous-duty operation
  • SS304 stainless steel wetted parts for corrosion resistance
  • Standard cast iron movable flange for secure system connection

Product Overview

The Adelino AL(BL) pump series is designed for high-pressure water transfer where consistent output and system reliability are required. Its vertical multi-stage configuration supports effective pressure increase across multiple stages, making it suitable for fire pump applications and pressurized water systems in commercial and industrial buildings.

All overflow (wetted) parts are made of SS304 stainless steel to resist corrosion and maintain performance in clean water installations. The unit is driven by an IE2 motor rated to IP55 protection with Class F insulation—supporting dependable operation for pressurization duties in fixed piping networks.

Ideal Applications

  • Fire protection and fire pump booster systems
  • Building water pressure boosting (commercial and industrial)
  • Water transfer for piping networks and distribution lines
  • Pressure boosting for facilities and technical installations

Technical Specifications

Brand Adelino
Series / Type AL(BL) Vertical Multi-Stage Centrifugal Pump (Fire Pump Series)
Pump Configuration Vertical multi-stage centrifugal
Motor Standard IE2 motor efficiency
Protection Rating IP55
Insulation Class Class F
Wetted Parts (Overflow) SS304 stainless steel
Flange Standard cast iron movable flange

What’s Included

  • Adelino AL(BL) Vertical Centrifugal Multi Stage Pump (Fire Pump Series)
