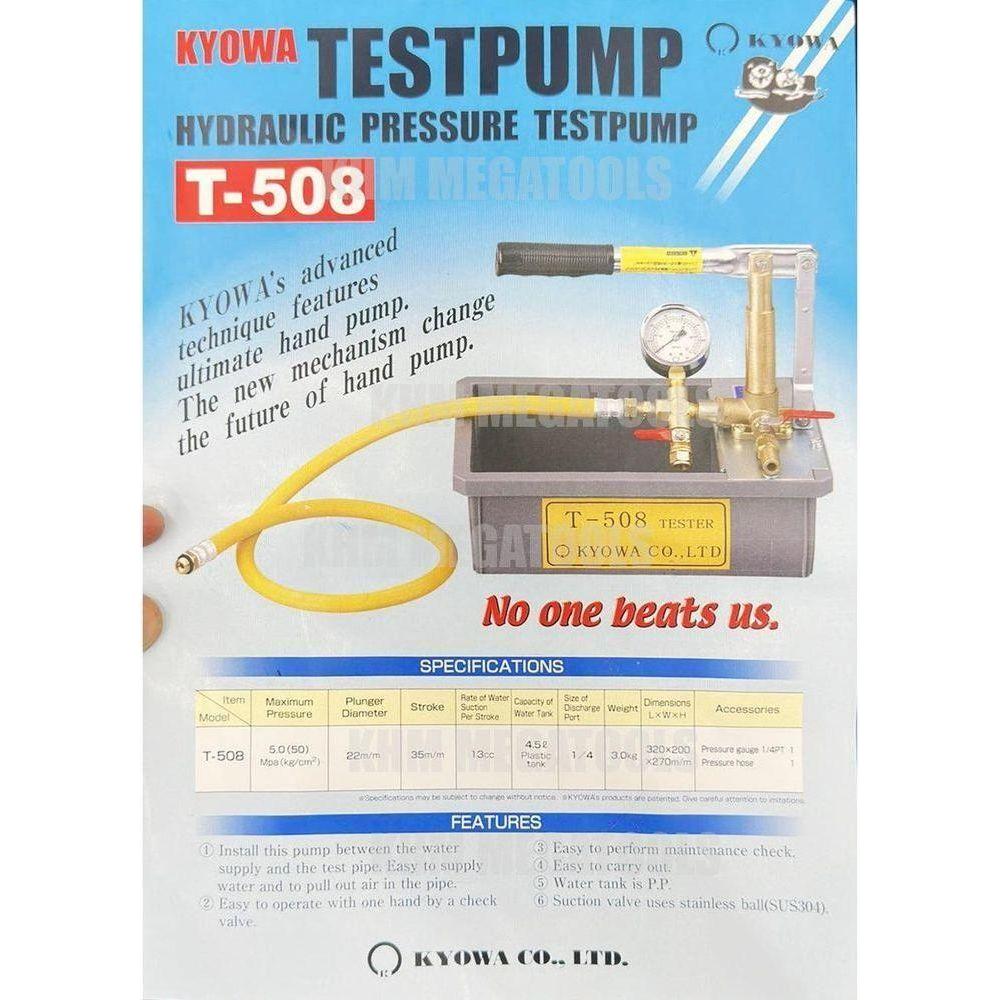

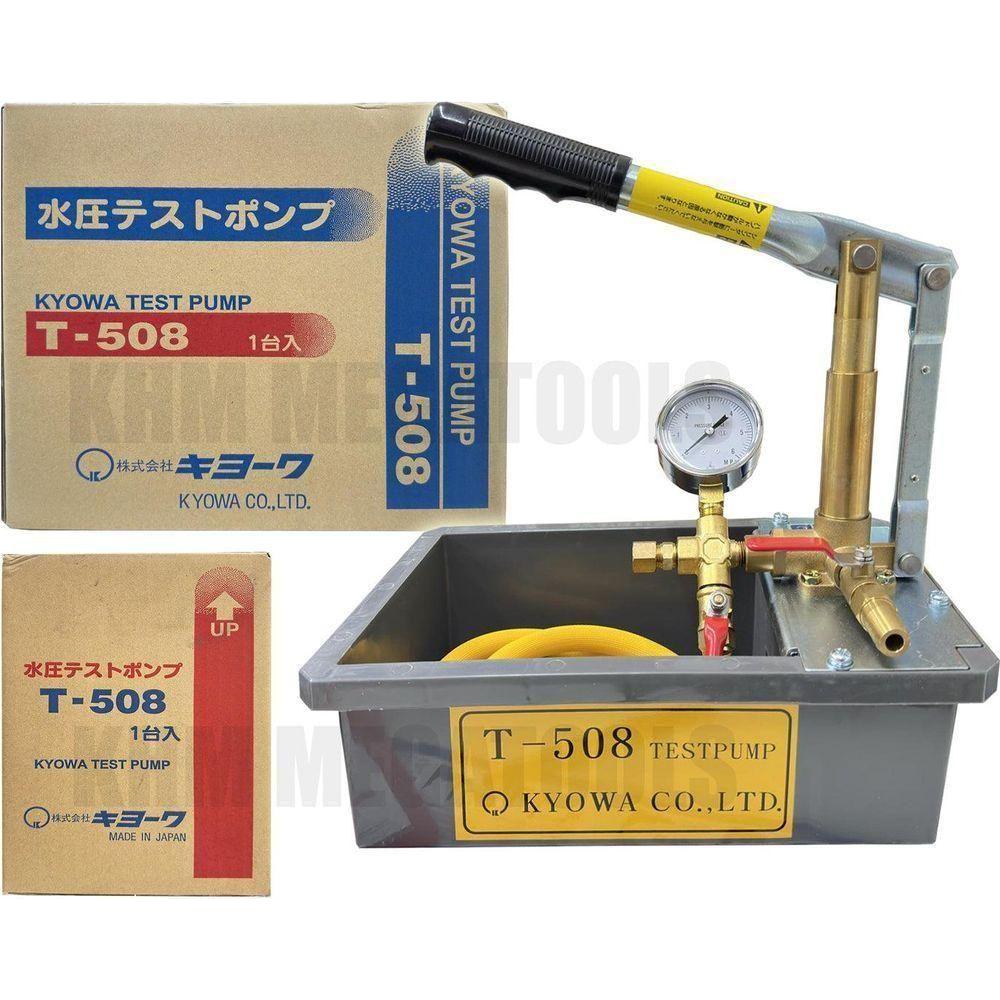

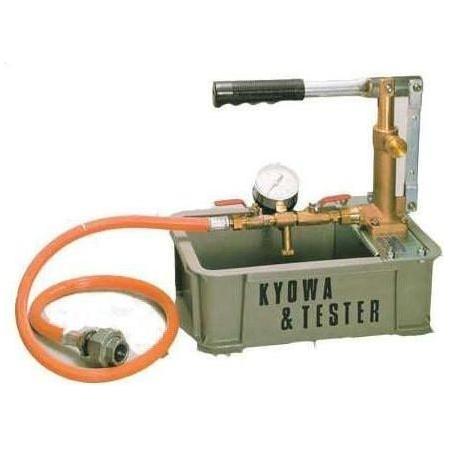

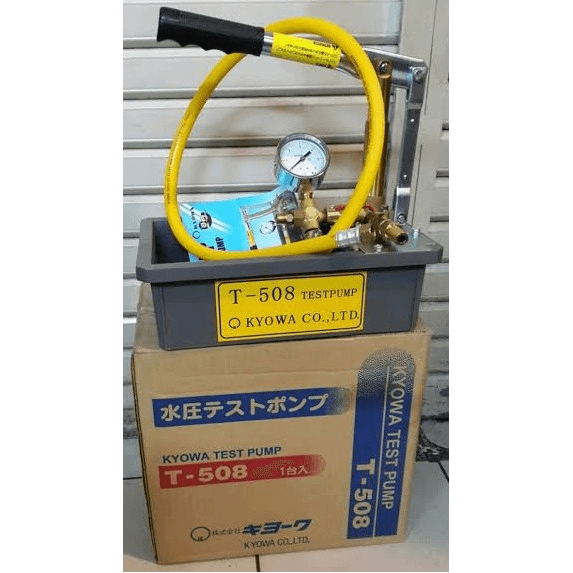

Kyowa T50KP / T-508 Hydraulic Pressure Test Pump

Kyowa T50KP / T-508 Hydraulic Pressure Test Pump

• Install this pump between the water supply and the test pipe. Easy to supply water to pull out air in the pipe.
• Easy to operate with one hand by a check valve.
• Easy to perform maintenance check.
• Easy to carry out
• Water tank is P.P.
• Sunction valve uses stainless ball (SUS304)

Specifications

Tank Capacity: 4.5 Liters
Maximum Pressure: 300 psi / 5.0 (50) Mpa (kg/cm2)
Plunger Diameter: 22mm
Stroke 35mm
Rate of Water Suction Per Stroke: 13cc
Capacity of Water Tank: 45 l Plastic Tank
Discharge Port Size: 1/4"
Weight: 300 kg

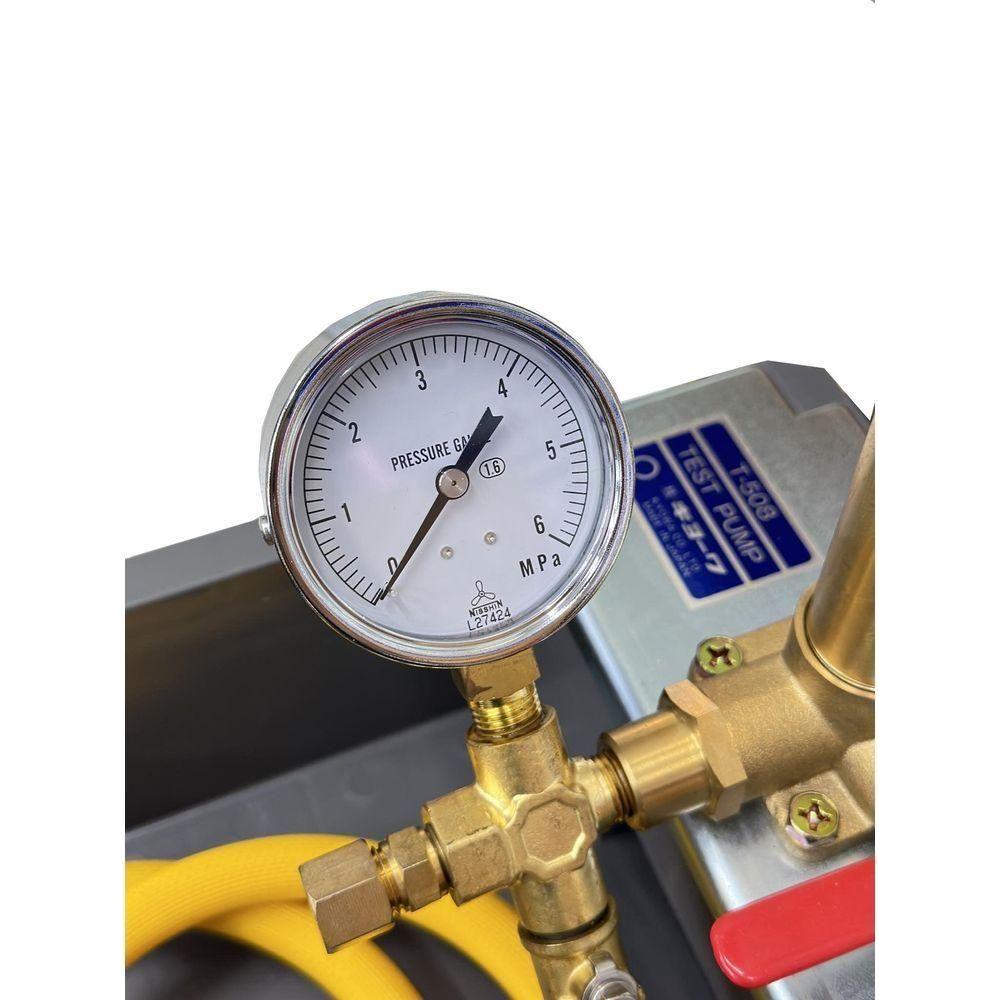

Accessories: Pressure Gauge 1/4 PT, Pressure Hose
