It's what's INSIDE that counts.
HS004GZ – 190mm (7-1/4″) Cordless Circular Saw 40Vmax XGT™ Li-ion [Bare Tool]

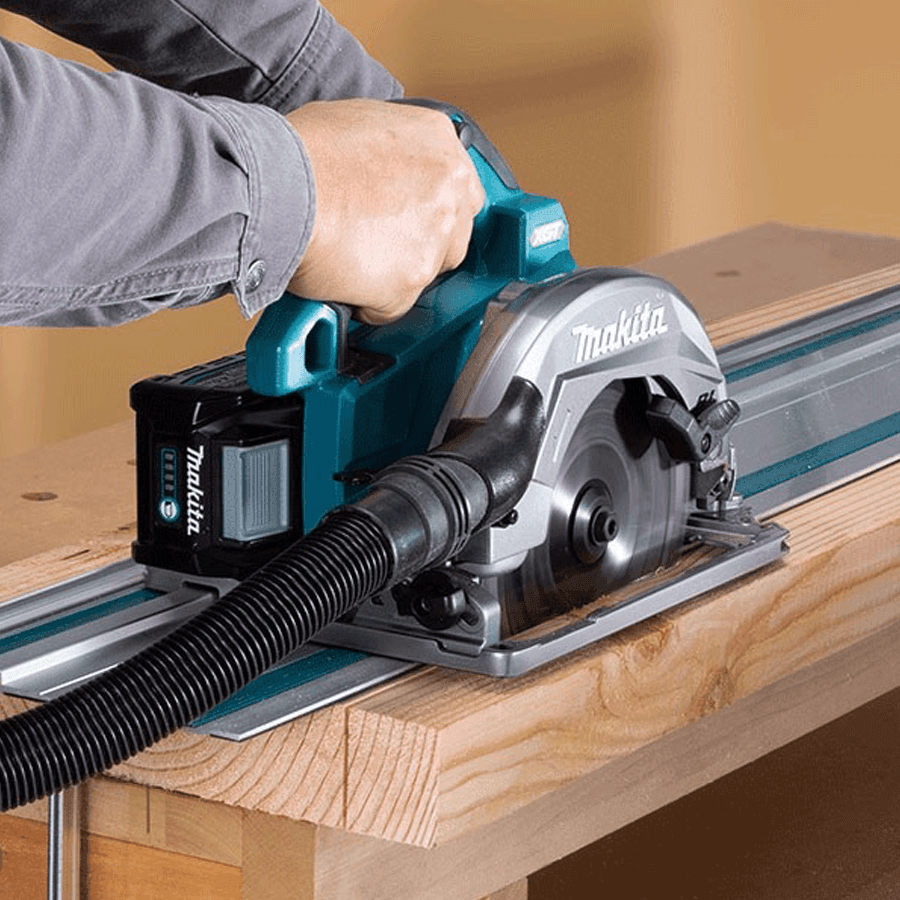

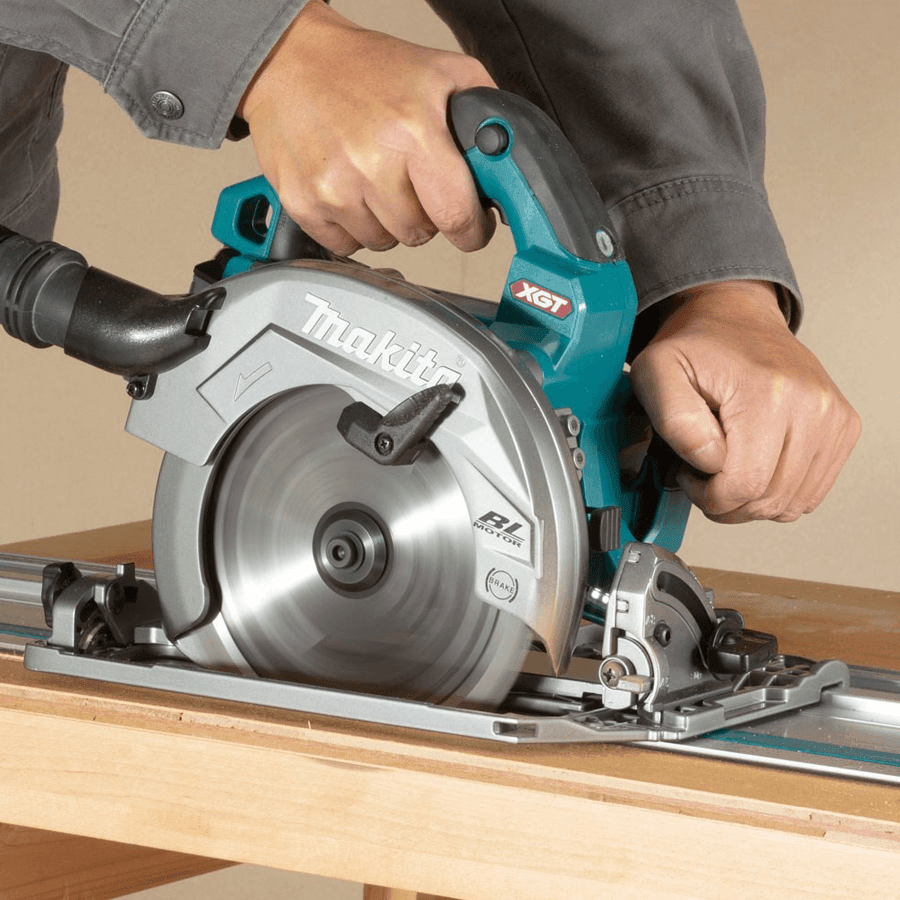

- Makita Guide Rail Compatible*
- Lightweight & high power
- 40Vmax XGT Li-Ion battery and BL motor allow for excellent balance of high power and lightweight maneuverability similar to corded tools
- BL motor delivers 6,000 RPM for fast cutting
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- Large cutting capacity (68.5 mm at 90°) and bevel capacity (0° – 56°) with a positive stop at 22.5° and 45°
- Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
- Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance
- Overload alert using ADT lamp
- Optional hook is compatible with 3X materials
- Electric brake for maximum productivity and increased operator safety
- Twin LED lights with preglow and afterglow functions for better illumination and more accurate work
- Magnesium components create lightweight saws that are well-balanced and jobsite tough
- Soft start for smooth start-ups
- XPT (eXtreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh conditions
- Soft grip provides increased comfort on the job
- Lock-off (2 stage) safety switch for increased operator safety
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Optional handy rip fence (guide rule) allows you to do extra-accurate straight cuts
Specifications:
Blade Diameter 190 / 185 mm (7-1/2″ / 7-1/4″)
Hole Diameter 15.88 / 20 / 30 mm (5/8″ / 13/16″ / 1-3/16″)
Max Cutting Capacity 90°: 68.5 / 66 mm (2-11/16″ / 2-5/8″)
45°: 47.5 / 45.5 mm (1-7/8″ / 1-13/16″)
56°: 35.5 / 34 mm (1-3/8″ / 1-5/16″)
No Load Speed (RPM) 6,000
Max Output 1,300 W
Vibration Level Cutting Wood: 2.5 m/s² or less
Vibration K Factor Cutting Wood: 1.5 m/s²
Vibration Level Cutting Metal: 2.5 m/s² or less
Vibration K Factor Cutting Metal: 1.5 m/s²
Sound Pressure Level 93 dB(A)
Sound Power Level 104 dB(A)
Noise K Factor 3 dB(A)
Dimensions (L x W x H) w/ BL4025: 316x200x290 mm (12-1/2″x7-7/8″x11-3/8″)
w/ BL4040: 331x200x290 mm (13″x7-7/8″x11-3/8″)
Net weight 4.1 – 4.4 kg (9.0 – 9.7 lbs.)
Inclusions:

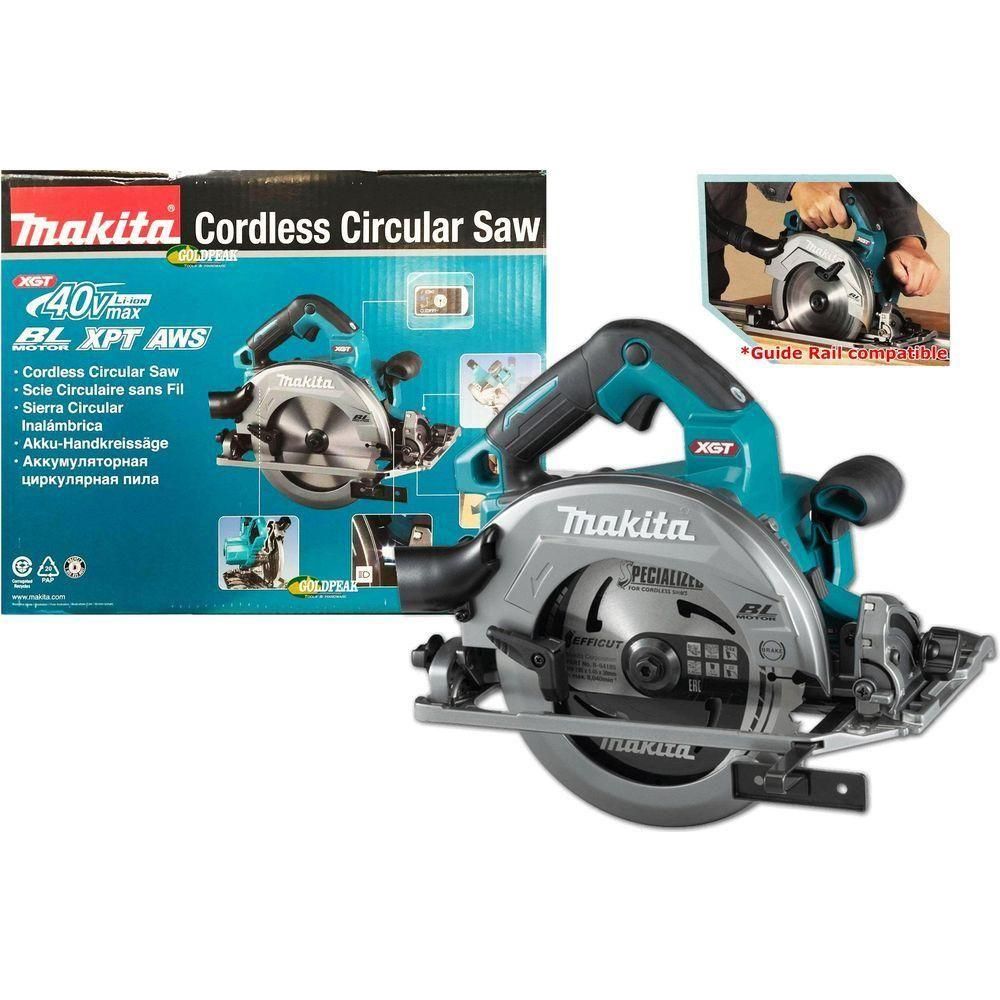

TCT Saw Blade, Dust Nozzle, Hex Wrench
Lifetime Service Warranty
