Milescraft EuroHingeJig Concealed Hinge Jig (1342)

The Milescraft EuroHingeJig Concealed Hinge Jig (#1342) is a precision woodworking tool designed for accurate installation of European-style concealed hinges. With adjustable edge offsets and built-in drill guides, it ensures consistent hinge placement for professional cabinet and furniture assembly.

Key Benefits

• Adjustable edge offsets allow precise hinge cup positioning
• Integrated drill guides ensure straight and accurate hinge holes
• Includes 35mm boring bit and depth settings for consistent results

Product Overview

The Milescraft EuroHingeJig is engineered for accuracy and ease of use, making it ideal for cabinet makers and DIY users. The dual edge alignment knobs allow precise adjustment of hinge cup positioning, while the locator pin ensures consistent placement from the top or bottom of the door. Built-in metal guide bushings provide stable drilling for both hinge cup holes and pilot holes, ensuring proper alignment and smooth door operation. The included hinge marking guide simplifies layout work by allowing easy transfer of hinge locations to cabinet frames or walls.

Ideal Applications

• Installation of concealed cabinet hinges
• Cabinet door fabrication and repair
• Furniture assembly and woodworking projects

Technical Specifications

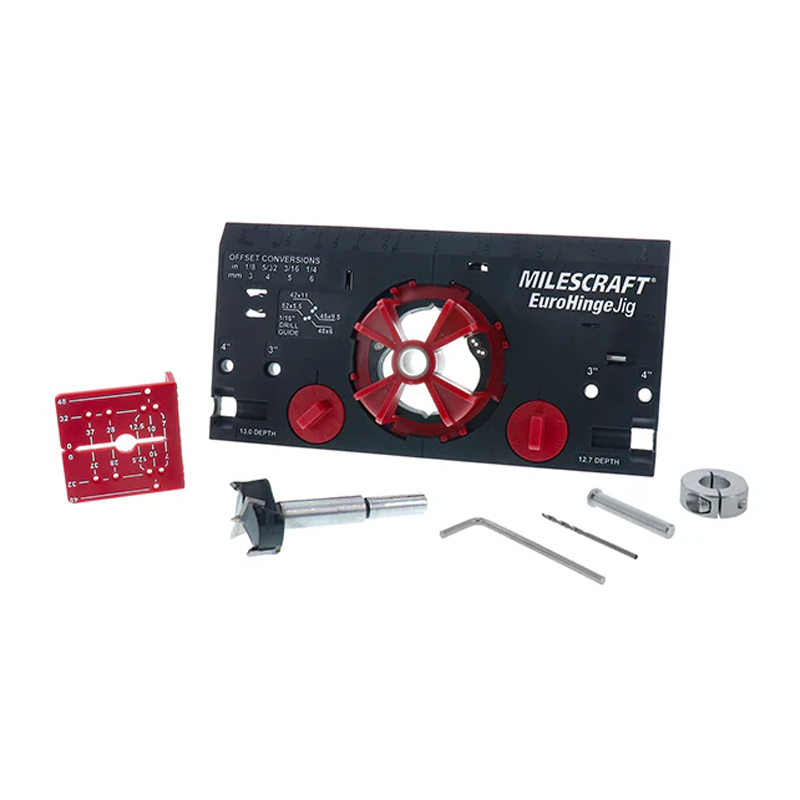

What’s Included

• Milescraft EuroHingeJig
• 35mm Euro Hinge Boring Bit
• Hinge Marking Guide
• 1/16″ Pilot Bit
• 3mm Allen Wrench
