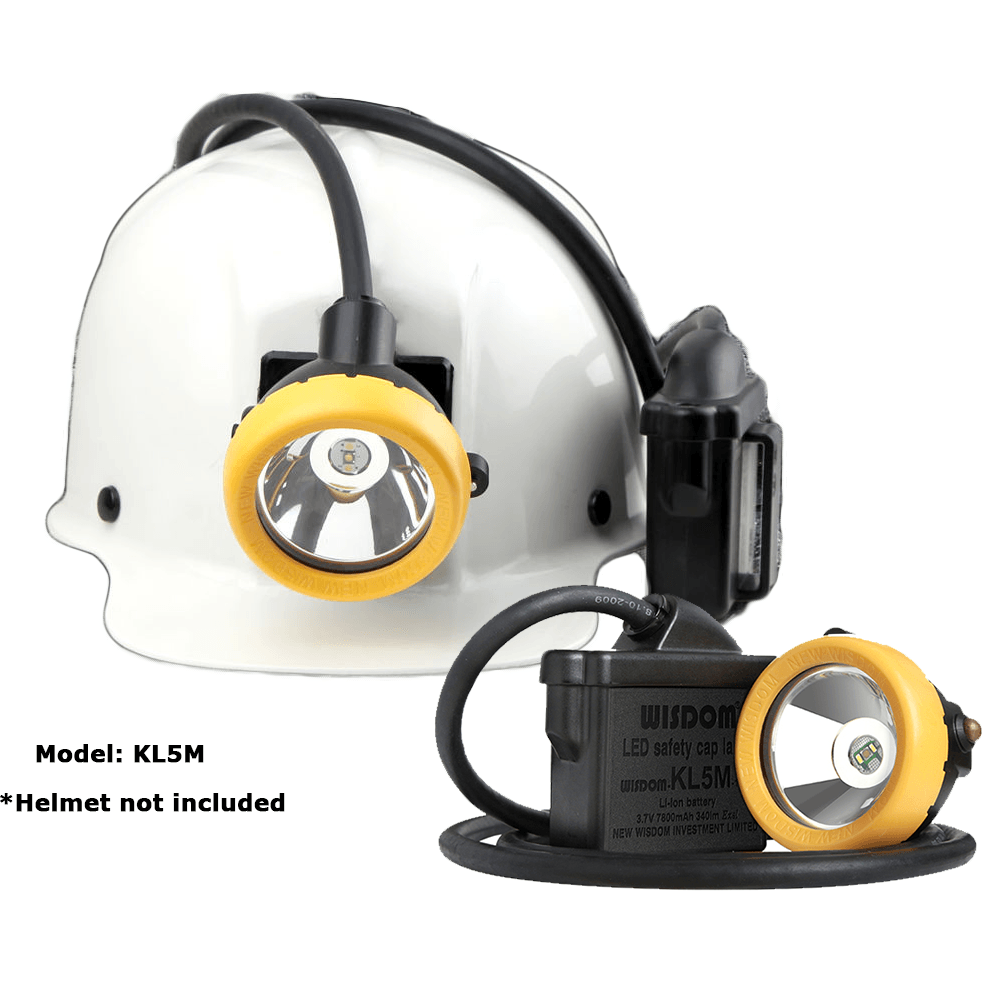

Wisdom KL5M Miner's LED Cap Corded Mining Lamp / Head Light (with NWB 20-A Charger)
Corded miner's cap lamp- Rechargeable.
- Explosion-proof, MSHA and ATEX M1.
- Water-proof, IP68.
For industrial mining lighting
Professional LED miner's cap lamp, brightness of 18000 lux, 13 hours run-time |
18000Lux brightness!
Bright the underground mine! |
7800 mAh high capacity High capacity li-ion battery |
IP68 water proof certificated, diving to more than 20 meters
IP68—the highest level standard waterproof certification standard for connectors. |
Charge full with four hours
Special charger designed for KL5M Miner's Cap Lamp, |
KL5M
1.4 and 1.65 m cable for option, standard version, super bright and super long run-time versions. |
Specifications
Version | KL5M Standard |
Rated capacity | 7800 mAh |
Rated voltage | 3.7 V |
Continuous discharging time | 13 h |
Main light LED working voltage | 3.0 V |
Main light LED working current | 640 mA |
Main light power | 1.92 W |
Main light luminous flux | 340 lm |
Lamp lighting degree (Initial lighting degree in 1 m) | 18000 lx |
Main light life span | 50000 h |
Auxiliary light power | 0.4 W |
Auxiliary light life span | 40000 h |
Short circuit protect time | < 320 μs |
Life span of the battery (Recharges) | 1200 cycles (In reasonable working condition) |
Charging time | 4-6 hours |
Dimensions | 94 x 36 x 85 mm; 3.7 x 1.4 x 3.3 in (Size of the battery box) |
Main cable | 1.4 / 1.65 m; 4.59 / 5.41 ft |
Weight | 500 g; 17.64 oz |
